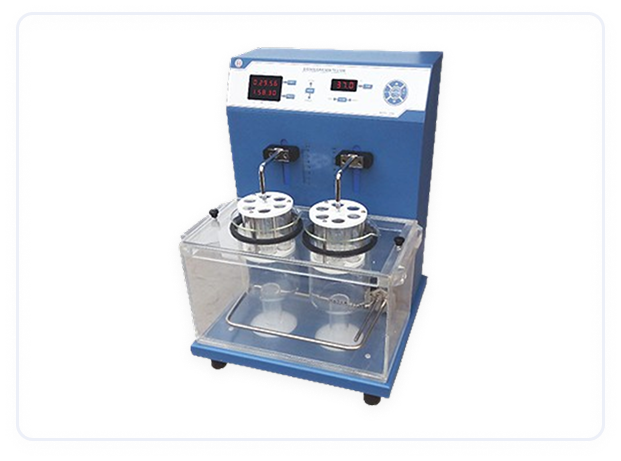

Disintegration tester

Key Features and Function of Disintegration Testers :
Purpose and Function :
Assessing Tablet and Capsule Disintegration : The primary purpose of a disintegration tester is to determine the disintegration time of solid dosage forms like tablets, capsules, or other solid forms. This time is critical because it indicates how quickly a medication will dissolve and begin to release its active ingredients after ingestion.

Regulatory Compliance : The disintegration test is an essential part of pharmaceutical quality control and is required by regulatory agencies (such as the FDA, EMA, and USP) to ensure that drugs meet required standards for effectiveness and safety.
Components of a Disintegration Tester :
Test Stations : A typical disintegration tester has multiple test stations, usually designed to hold a series of dosage forms. For example, a tester might have 6 or 12 test stations (based on the model) that allow simultaneous testing of multiple samples.

Water Bath or Immersion Medium : The samples (tablets or capsules) are placed in cylindrical tubes filled with an immersion medium, often water or a specific dissolution medium. The immersion medium is usually maintained at a specific temperature (typically 37°C, simulating body temperature).

Paddle or Basket Assembly : The test involves using a rotating or vibrating assembly to agitate the sample gently. There are two primary types:
Paddle Method : The tablet or capsule is placed in a basket that moves up and down in the immersion medium. The paddle gently agitates the medium.
Basket Method : Tablets or capsules are placed inside a small mesh basket that moves vertically through the immersion medium.

Temperature Control : The tester is equipped with a temperature-controlled system to ensure that the testing environment maintains the required temperature (usually 37°C ± 2°C) to simulate physiological conditions.

Timing Mechanism : The instrument automatically records the time it takes for the dosage form to disintegrate, providing results that help determine the appropriate disintegration time.
Types of Disintegration Testers :
Single-Sample Testers : Some disintegration testers are designed for small-scale testing and may only allow testing of one tablet or capsule at a time. These are usually found in research or smaller laboratories.

Multi-Sample Testers : These are more commonly used in pharmaceutical manufacturing and quality control, offering multiple stations (usually 6 or 12) to test many samples simultaneously, increasing efficiency.
